GROVE

All-Terrain Cranes

Grove all-terrain cranes are manufactured to the highest quality in the Wilhelmshaven factory, Germany. This facility, specializing in lean manufacturing techniques and complying with ISO9001 quality standards, is constantly developing processes to optimize reliability and durability through continuous improvement.

Grove all-terrain cranes deliver powerful lifting performance, superior off-road mobility and fast highway speeds. Combine these benefits with industry leading reliability, service and support and you’ll agree that Grove all-terrain cranes are a smart choice for your business

Nominal capacity
Maximum capacity of a crane. It is obtained at minimum radius with basic minimum boom length of a crane.

  • 50t 450t
  • 55USt 550USt

Total gross vehicle weight
Total gross vehicle weight

  • 36000kg 84000kg
  • 79370lbs 185190lbs

Main boom length
Boom Length of main boom measured from Boom Pivot to the Top Boom Point

  • 16m 80m
  • 53ft 263ft

Max tip height
Max tip height

  • 51m 136m
  • 167ft 448ft
GROVE

All-Terrain Cranes

  • GROVE | All-Terrain Cranes

    GMK5180-1

    • Nominal capacity 210 USt 180 t

    • Total gross vehicle weight 132280 lbs 60000 kg

    • Main boom length 210 ft 64 m

    • Max tip height 331.4 ft 101 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK5200-1

    • Nominal capacity 240 USt 200 t

    • Total gross vehicle weight 132280 lbs 60000 kg

    • Main boom length 210 ft 64 m

    • Max tip height 331.4 ft 101 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK5250L-1

    • Nominal capacity 300 USt 250 t

    • Total gross vehicle weight 132280 lbs 60000 kg

    • Main boom length 230 ft 70 m

    • Max tip height 360.9 ft 110 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK6300L-1

    • Nominal capacity 350 USt 300 t

    • Total gross vehicle weight 158733 lbs 72000 kg

    • Main boom length 263 ft 80 m

    • Max tip height 393 ft 120 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK7550

    • Nominal capacity 550 USt 450 t

    • Total gross vehicle weight 185190 lbs 84000 kg

    • Main boom length 53 ft - 197 ft 16 m - 60 m

    • Max tip height 443 ft 135 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK5250XL-1

    • Nominal capacity 300 USt 250 t

    • Total gross vehicle weight 130000 lbs 60000 kg

    • Main boom length 257.5 ft 78.5 m

    • Max tip height 358 ft 109 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK3060L-1

    • Nominal capacity 65 USt 60 t

    • Total gross vehicle weight 79370 lbs 36000 kg

    • Main boom length 157 ft 48 m

    • Max tip height 213 ft 65 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK3050-3

    • Nominal capacity 55 USt 50 t

    • Total gross vehicle weight 79370 lbs 36000 kg

    • Main boom length 131 ft 40 m

    • Max tip height 167 ft 51 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK3060-2

    • Nominal capacity 65 USt 60 t

    • Total gross vehicle weight 79370 lbs 36000 kg

    • Main boom length 131 ft 40 m

    • Max tip height 190 ft 58 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK4090-1

    • Nominal capacity 100 USt 90 t

    • Total gross vehicle weight 105820 lbs 48000 kg

    • Main boom length 167 ft 51 m

    • Max tip height 246 ft 75 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK4080-3

    • Nominal capacity 88 USt 80 t

    • Total gross vehicle weight 105820 lbs 48000 kg

    • Main boom length 167 ft 51 m

    • Max tip height 246 ft 75 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK4100L-2

    • Nominal capacity 115 USt 100 t

    • Total gross vehicle weight 105820 lbs 48000 kg

    • Main boom length 197 ft 60 m

    • Max tip height 292 ft 89 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK5120L

    • Nominal capacity 130 USt 120 t

    • Total gross vehicle weight 132280 lbs 60000 kg

    • Main boom length 216.5 ft 66 m

    • Max tip height 295 ft 90 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK5150-1

    • Nominal capacity 175 USt 150 t

    • Total gross vehicle weight 132280 lbs 60000 kg

    • Main boom length 167 ft 50.8 m

    • Max tip height 289 ft 96 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK5150L-1

    • Nominal capacity 175 USt 150 t

    • Total gross vehicle weight 132280 lbs 60000 kg

    • Main boom length 197 ft 60 m

    • Max tip height 318.2 ft 97 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK5150XL

    • Nominal capacity 175 USt 150 t

    • Total gross vehicle weight 132280 lbs 60000 kg

    • Main boom length 225 ft 68.7 m

    • Max tip height 325 ft 99 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK4070L

    • Nominal capacity 75 USt 70 t

    • Total gross vehicle weight 105820 lbs 48000 kg

    • Main boom length 197 ft 60 m

    • Max tip height 253 ft 77 m

    VIEW PRODUCT
  • GROVE | All-Terrain Cranes

    GMK4080L

    • Nominal capacity 85 USt 80 t

    • Total gross vehicle weight 105820 lbs 48000 kg

    • Main boom length 197 ft 60 m

    • Max tip height 253 ft 77 m

    VIEW PRODUCT
  • new
    GROVE | All-Terrain Cranes

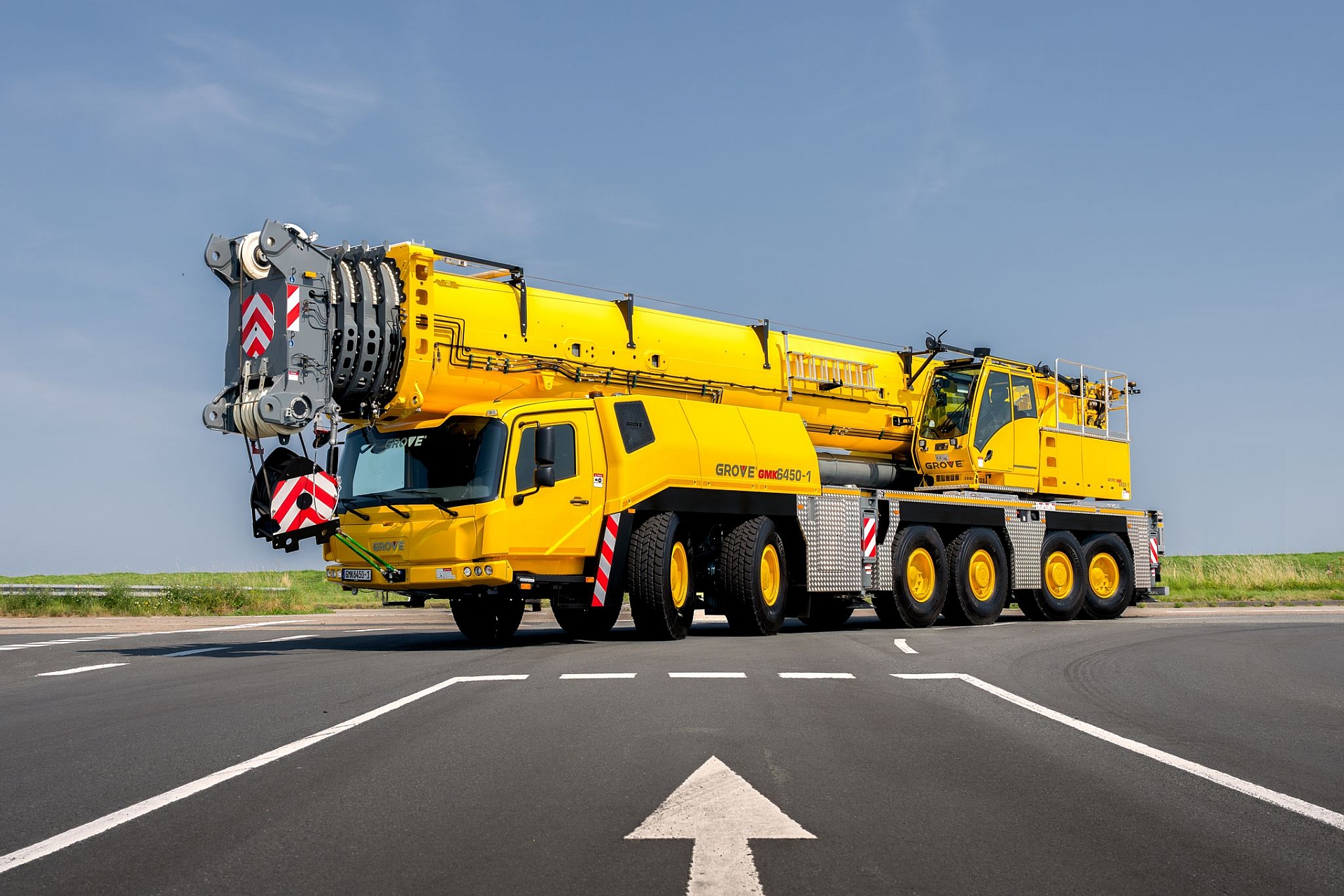

    GMK6450-1

    • Nominal capacity 500 USt 450 t

    • Total gross vehicle weight 158730 lbs 72000 kg

    • Main boom length 197 ft 60 m

    • Max tip height 448 ft 136 m

    VIEW PRODUCT

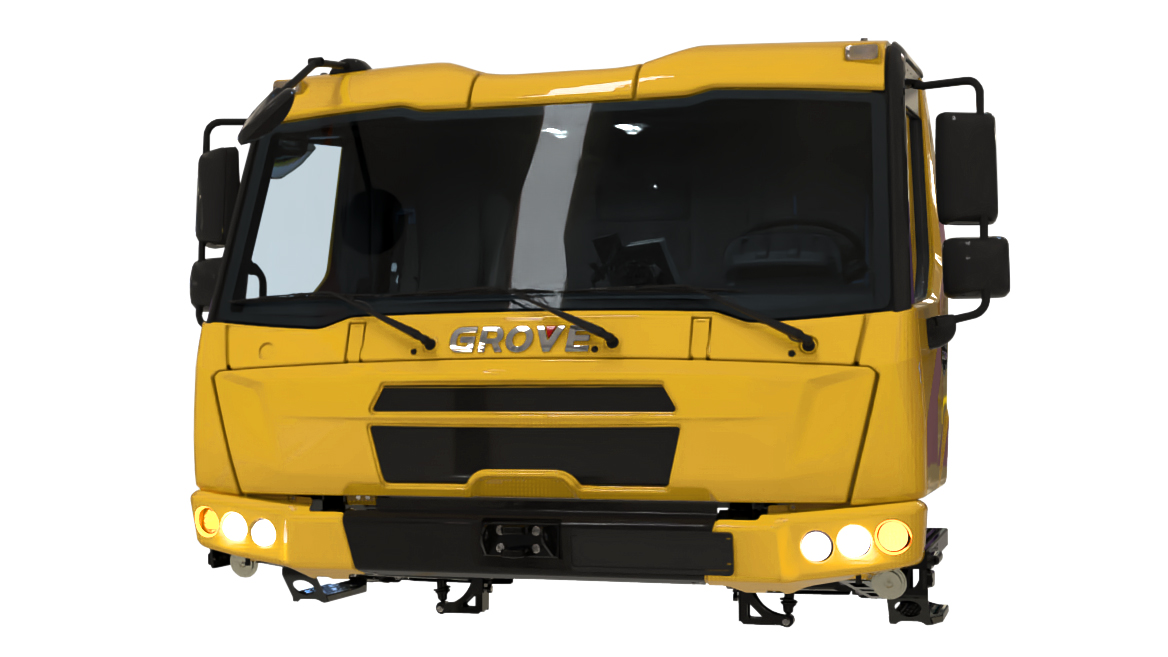

  • New Grove carrier cab


  • GROVE® CONNECT™

    GROVE CONNECT IMAGE

    Our cranes become a connected and sustainable lifting solution.

    GROVE® CONNECT™

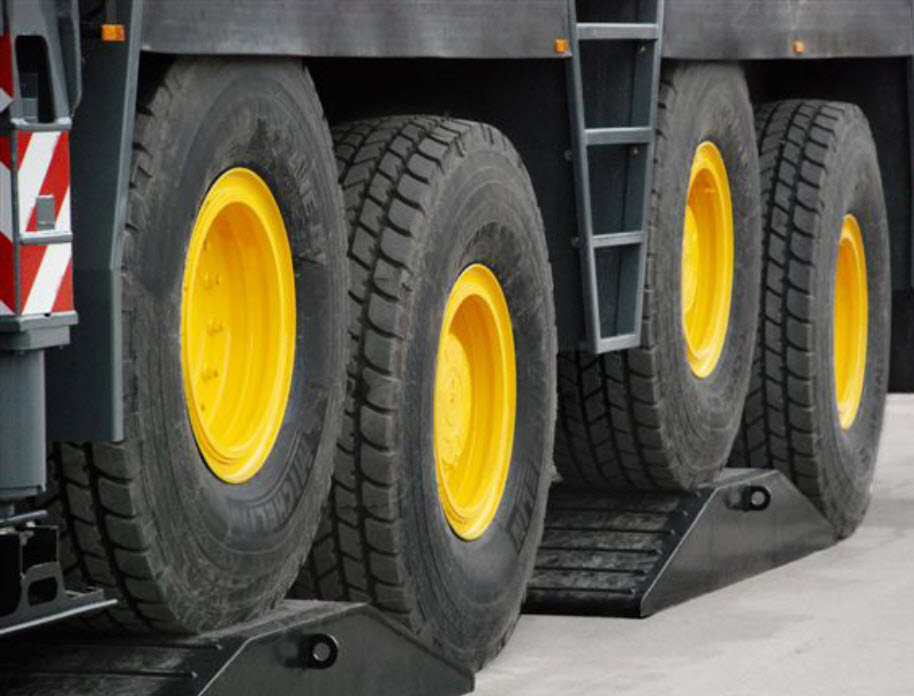

  • MEGATRAK®


    All wheels with independent hydropneumatic suspension and hydraulic lockout.

    Learn more

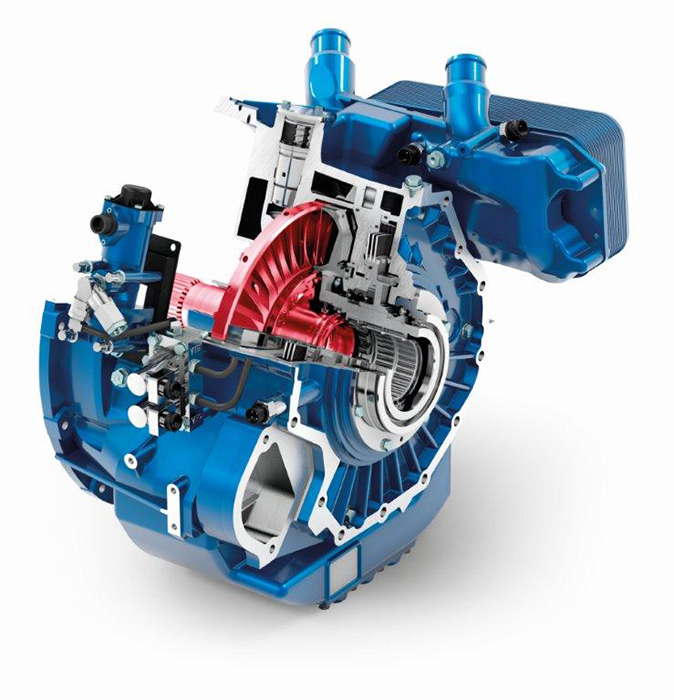

  • VIAB

    VIAB turbo retarder clutch option

    VIAB enables wear-free starting and braking

    VIAB

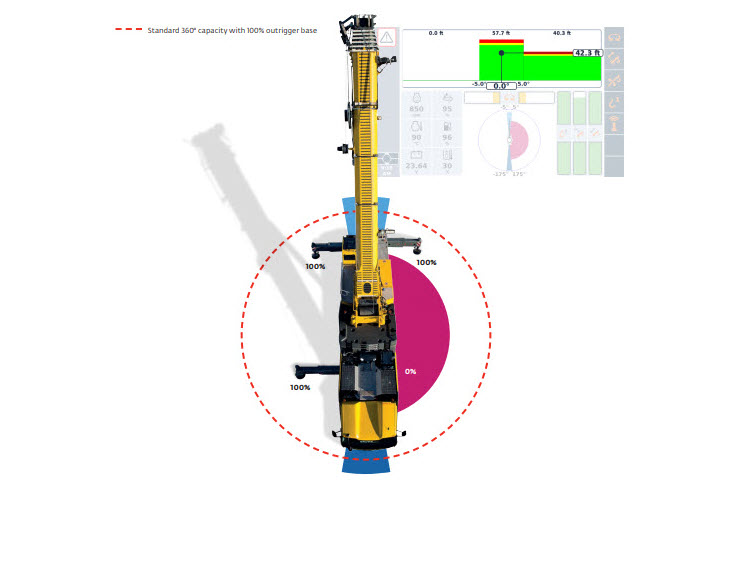

  • MAXbase™

    Grove MAXbase™

    Grove MAXbase™ allows asymmetrical outrigger positions

    MAXbase™

News

NessCampbell Crane + Rigging’s new Grove GMK6450-1 excels in tilt-up panel lift project

• The 500-USt Grove, the first in North America, successfully lifted and placed heavy concrete panels during a week-long project in Washington state.
• NessCampbell’s team skillfully operated the crane in challenging weather and on uneven terrain.

Manitowoc unveils exciting cranes and a host of new customer support services at bauma 2025

• A range of products and services will be presented – all designed to help customers achieve more productivity and return on investment with their Manitowoc cranes.
• One of the highlights will be a Grove Plug-in Hybrid all-terrain crane, which offers customers an exciting option for more sustainable lifting.
• There will be a strong focus on aftermarket support with several new technologies and services to enhance the customer experience.

New Grove Plug-in Hybrid all-terrain cranes to star at bauma 2025

• Manitowoc is launching two new Grove hybrid all-terrain cranes; one of the models, the GMK5150XLe, takes center-stage on its booth at bauma 2025 in Munich, Germany.
• The new cranes combine a fully electrified superstructure with one of Grove’s most popular five-axle carrier designs for cleaner, enhanced performance.
• Up to a full day’s emission-free power is possible while retaining the operational benefits of the original long-reach cranes.
