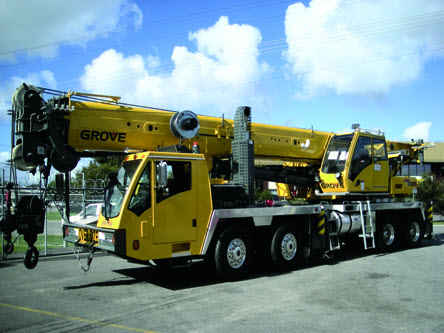

TMS9000E

Non current product

The TMS9000E replaces the TMS900E and offers a 23 percent increase in overall capacities. Additional upgrades include improvements to the chassis and superstructure cabs boom support and counterweight support designs and accessibility for service and maintenance.



NOTE: TM/TMS models are not CE certified. Please contact your local Grove distributor for availability and special fuel requirements in your area.
GROVE | Truck-Mounted Cranes

TMS9000E

  • Boom extension 56ft 17.0688m
  • Total gross vehicle weight 86056lbs 39034.3kg
  • Main boom length 142ft 43.2816m
  • Max capacity 110USt 99.7903t
Manitowoc Open gallery

Specifications

  • Description
    • 5-section full-power MEGAFORM boom
    • TWIN-LOCK boom pinning system
    • Superstructure cab tiltable to +20°
    • Cummins ISM 450 hp 6-cylinder turbo-charged after-cooled engine
    • Max 48 500 lb (21 300 kg) counterweight with hydraulic removal system
    • Counterweight removal controlled from superstructure cab

Load More

News

R&D Crane expands fleet with new Grove GMK5250L all-terrain crane to meet growing market demand

The new GMK5250L brings Grove’s latest technologies to R&D Crane’s fleet; the crane was designed to increase job site versatility and lower operating costs.

Grove TMS9000E adds versatility and roadability to Iron Stag’s fleet

The family that owns Iron Stag Crane Service has been a part of the crane and lifting industry in Pennsylvania for 50 years.

Brand & Range

Brand

GROVE

Grove is the world leader in mobile cranes. For nearly a century, Grove has delivered best-in-class performance and groundbreaking technology through its range of rough-terrain, all-terrain, truck-mounted, military, industrial and telescoping crawler cranes. With the most rigorous testing processes in the lifting industry, Grove’s well-earned reputation for quality and reliability remains unmatched in the lifting industry.

Range

Truck-Mounted Cranes

Quick set-up is a feature of Grove TMs along with long reach, high capacity booms and highway speed travel capabilities. A front outrigger is standard for 360° operation. Grove truck cranes are popular choices because of their extensive list of standard features.
