TMS800-2

The TMS800-2 brings the latest truck crane technologies from Grove to the 80-ton size class. The new lightweight carrier design capably roads up to 28,000 lb of counterweight with no fall-off loads or wing weights and has capacities that are up to 26% stronger than its closest competitor.

GROVE | Truck-Mounted Cranes

TMS800-2

  • Max capacity 80USt 70t
  • Total gross vehicle weight 105656lbs 47925kg
  • Main boom length 40ft - 128ft 12.2m - 39m
  • Max tip height 194.3ft 59.2m

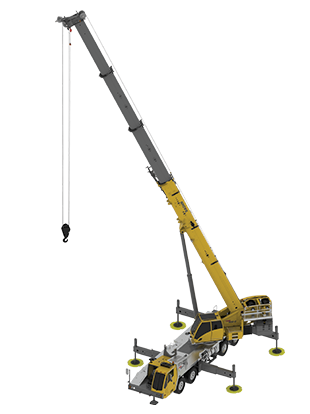

TMS800-2 crane silhouette transparent image Open gallery

Specifications

  • BOOM
    • 40-128 ft (12,2 m – 39,0 m) four-section, MEGAFORM, Twin-Lock boom
    • Max tip height: 137.0 ft (41,8 m)
    • Optional 34.5 ft- 57.6 ft (10,5 m - 17,6 m) telescoping swingaway lattice extension (manual or hydraulic)
    • Max tip height with jib: 194.3 ft (59,2 m)
  • CARRIER
    • Engine: Cummins X12 6-cylinder turbocharged and after-cooled, 475 bhp
    • Eaton manual or automated transmission
  • SUPERSTRUCTURE
    • Chassis-mounted outrigger controls with auto-leveling feature
    • Manitowoc CCS crane control system with two full graphic displays and jog dial
    • MAXBase asymmetrical outrigger position system
  • COUNTERWEIGHT
    • Standard and heavy lift counterweight packages both interchangeable with TMS9000E and TMS9000-2
    • Counterweights hydraulically controlled from cab or rigging remote
  • DIMENSIONS
    • Overall length: 46.9 ft (14,3 m)
    • Overall width: 8.3 ft (2,5 m)
Load More

Similar products

News

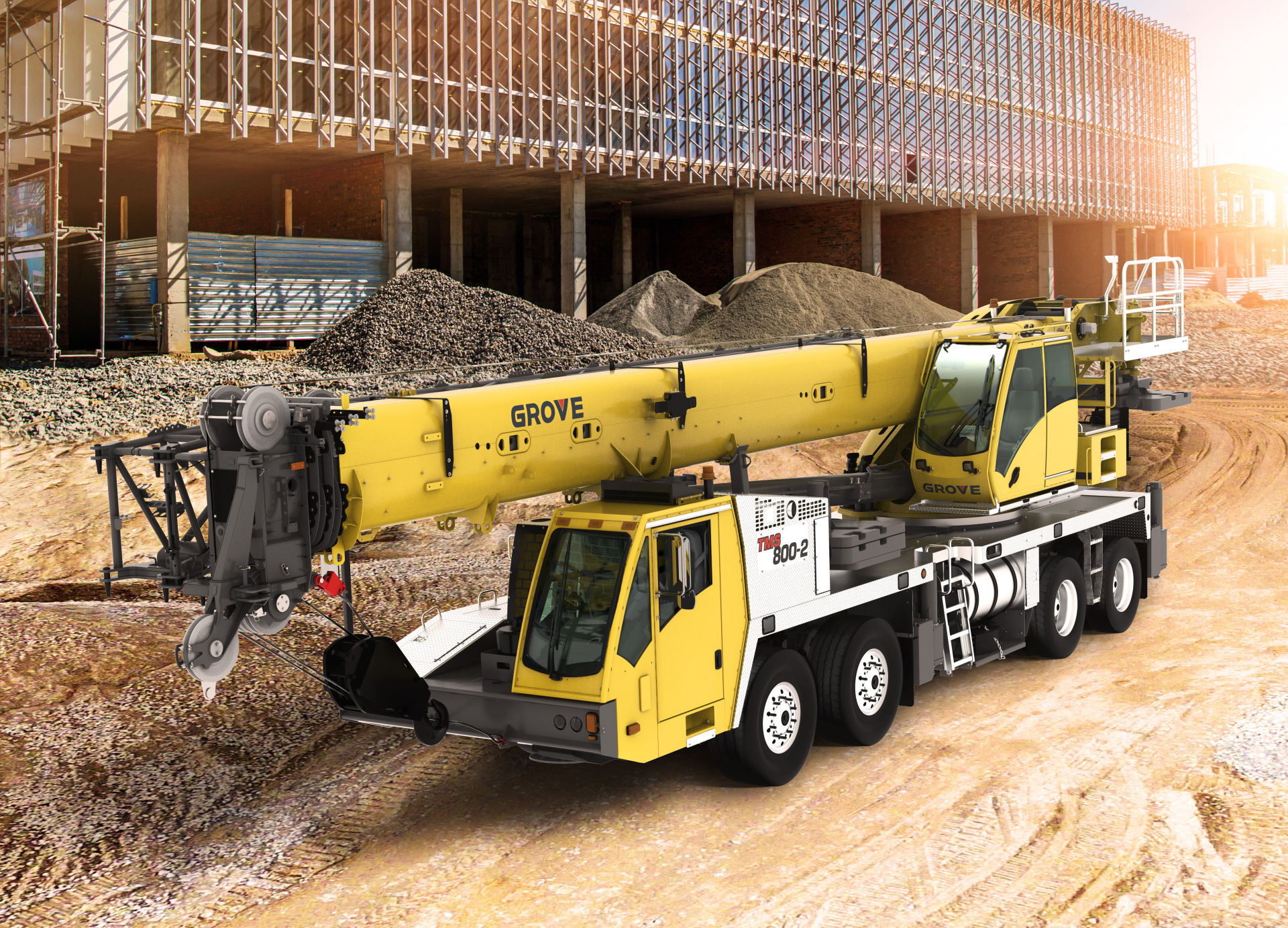

New Grove TMS800-2 boosts productivity with easier roading and ‘big crane’ features
