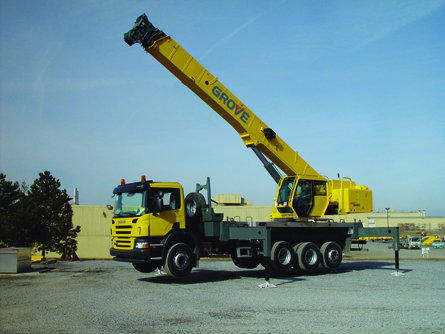

The TMC540 is truck crane mounted on a rugged and proven Scania carrier. The crane is equipped with separate carrier and truck engines to maximize fuel efficiency in both transport and lifting modes. With a total weight of under 32 t the crane can travel on roads without a special permit in many countries.
Four axle
Four-section boom
Optional 7.9 m (26 ft) offsettable telescopic swingaway jib
Superstructure engine: Cummins QSB 3 l 4-cylinder (82 kW) with full-authority electronic controls
2 550 kg (5 622 lb) counterweight pinned to superstructure
Max weight: 30 094 kg (30 USt)
Grove is the world leader in mobile cranes. For nearly a century, Grove has delivered best-in-class performance and groundbreaking technology through its range of rough-terrain, all-terrain, truck-mounted, military, industrial and telescoping crawler cranes. With the most rigorous testing processes in the lifting industry, Grove’s well-earned reputation for quality and reliability remains unmatched in the lifting industry.
Quick set-up is a feature of Grove TMs along with long reach, high capacity booms and highway speed travel capabilities. A front outrigger is standard for 360° operation. Grove truck cranes are popular choices because of their extensive list of standard features.
