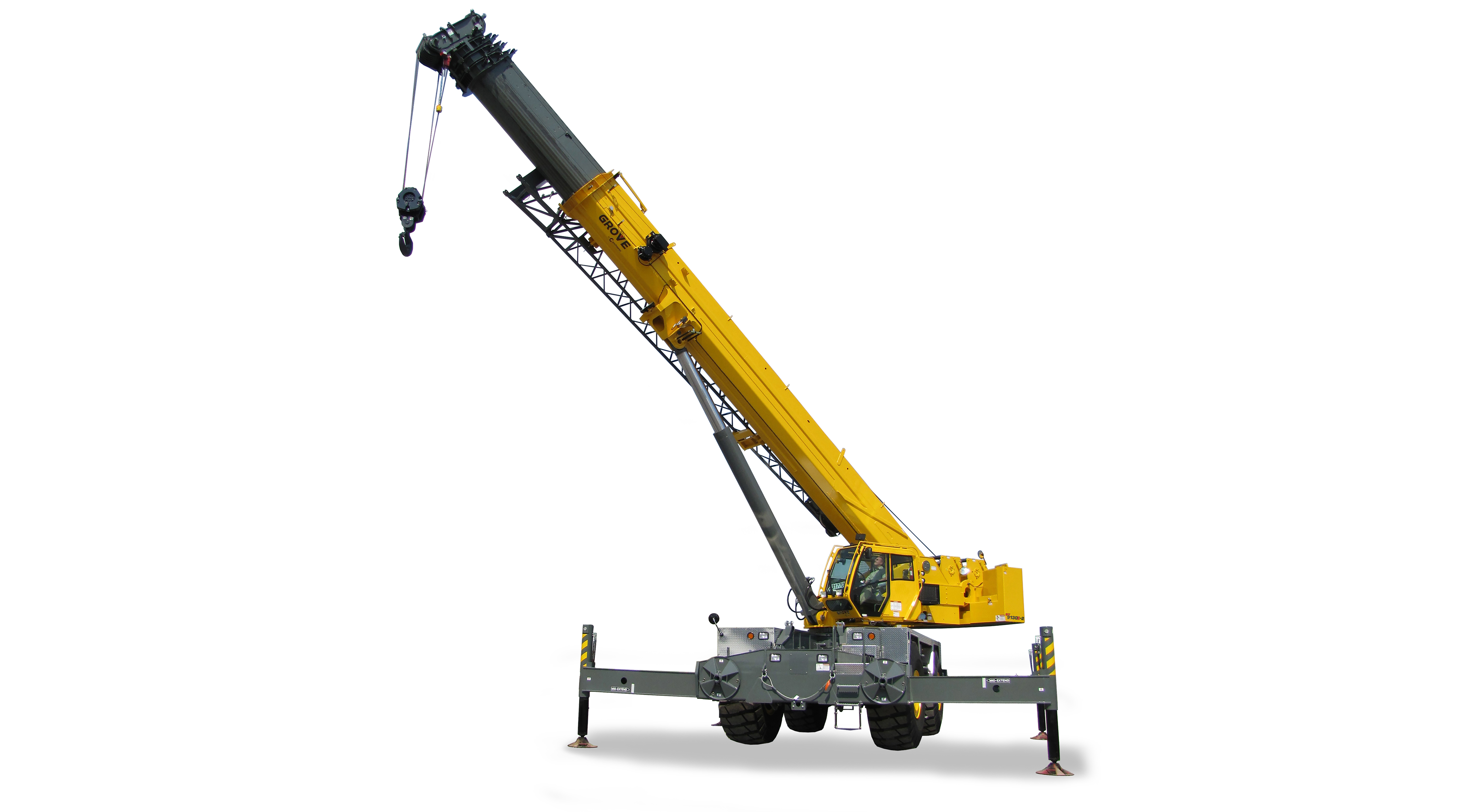

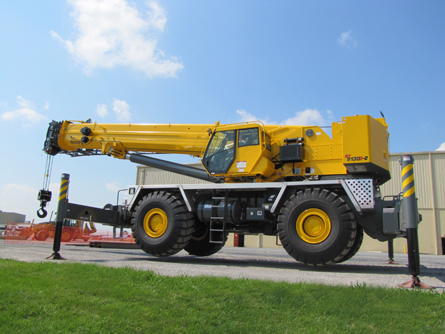

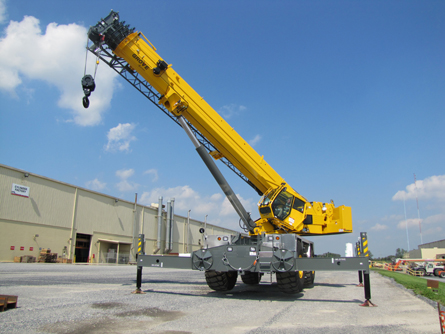

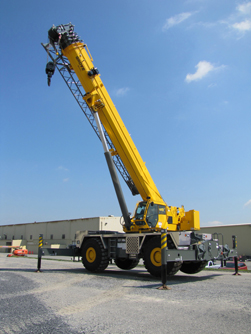

RT9130E-2

The RT9130E-2 comes with a 12,8 m to 48,8 m (42 ft to 160 ft) five-section, full power boom that provides quick and powerful lifting performance. This combined with a strong permissible line pull, Cummins engine, Full Vision cab as well as removable and self-rigging outrigger boxes and counterweights ensure that the RT9130E-2 will deliver unmatched efficiency and productivity on the jobsite.

GROVE | Rough-Terrain Cranes

RT9130E-2

  • Max capacity 130USt 120t
  • Total gross vehicle weight 175735lbs 79710kg
  • Main boom length 42ft - 160ft 12.8m - 48.7m
  • Max tip height 279ft 85m
Manitowoc Open gallery

Specifications

  • Description
    • Five-section, full power MEGAFORM™ boom – Fast and efficient operation on the jobsite.
    • 11 m to 18 m (36 ft to 59 ft) manual or hydraulically offsettable bi-fold swingaway provides additional reach and versatility to win more jobs.
    • Two 8 m (26 ft) lattice boom inserts provide a maximum tip height of 85 m (279 ft) when paired with the bi-fold swingaway for maximum reach
    • 7620 kg (16,800 lb.) permissible line pull – Stronger line pull provides faster rigging and quicker operation.
    • Self-rigging outrigger boxes and counterweight are quick to set-up and improve transportation.
    • Full vision cab with 20° cab tilt and a high-output heating & air conditioning system that maximizes operator comfort.
    • Single Axis hydraulic controls for smooth operation.
    • Cummins QSL Tier 4 Final or Tier 3 diesel engine – Powerful and reliable performance.
    • Four modes of steering increase jobsite maneuverability and makes crane positioning easier.
    • Inverted outrigger jacks provide additional protection and ensure maximum reliability.
    • Hydraulic disc brakes on all wheels – No additional air system, lower maintenance costs.
