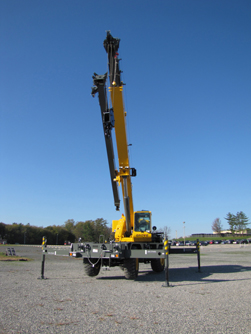

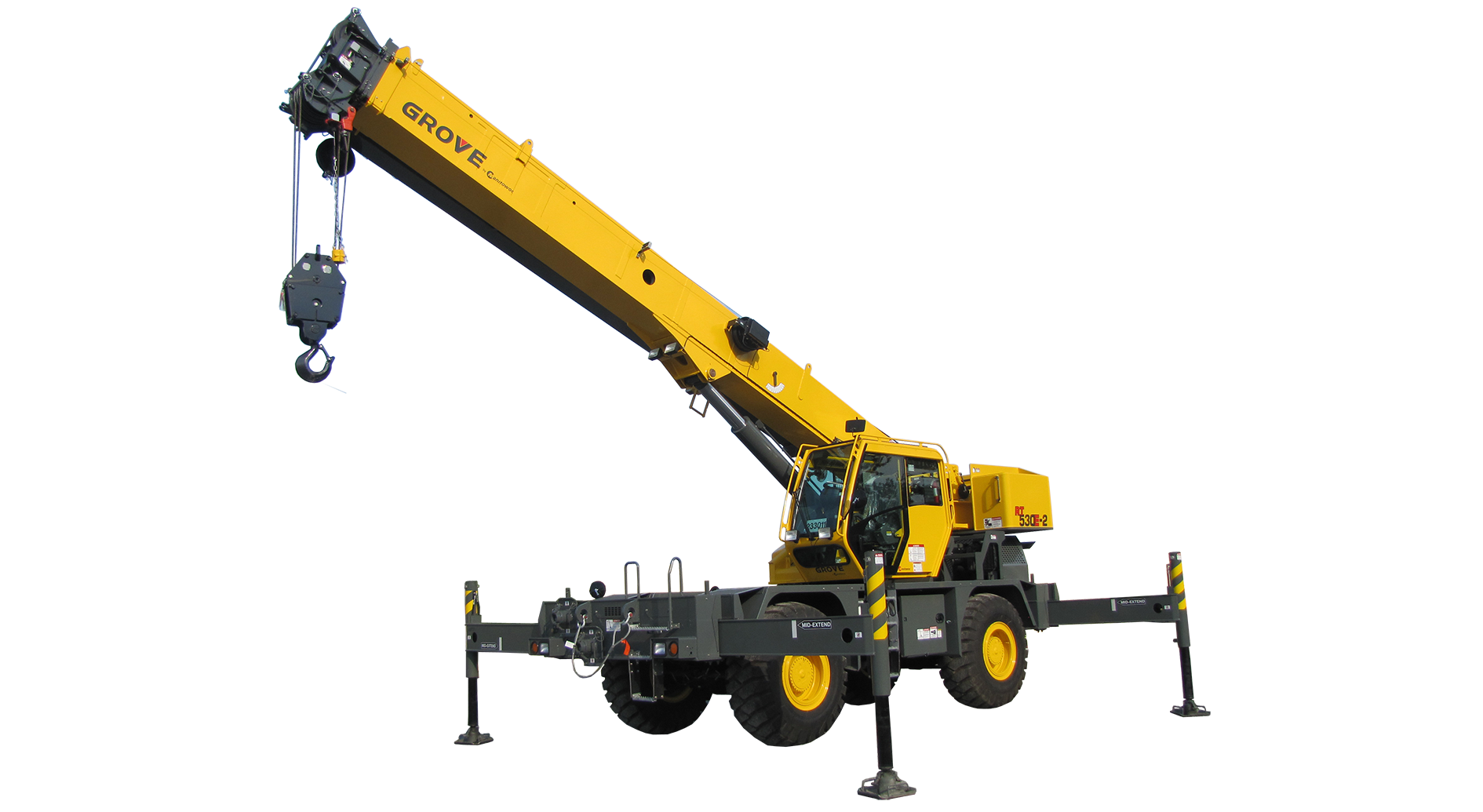

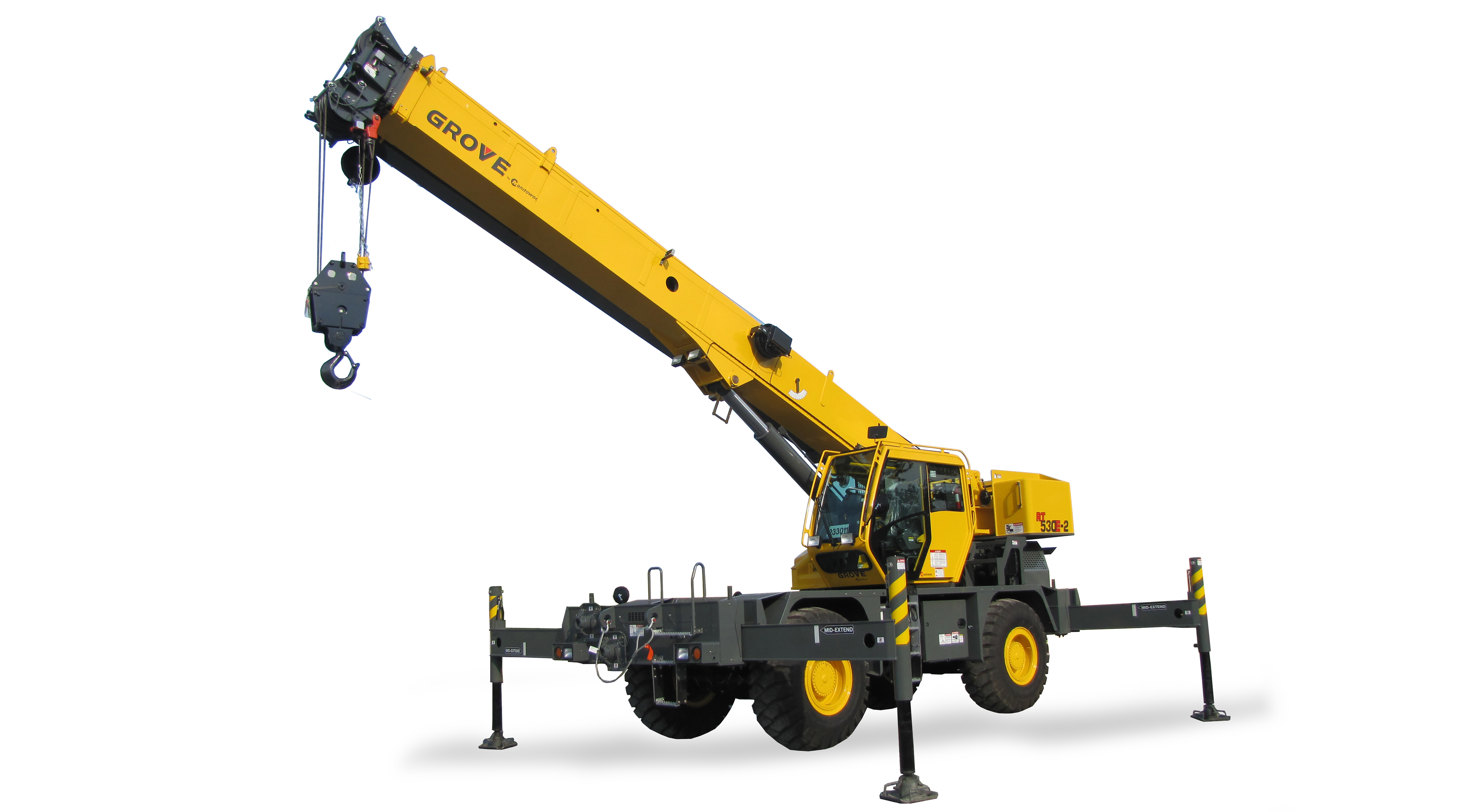

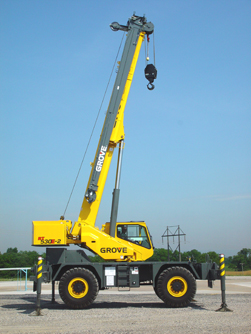

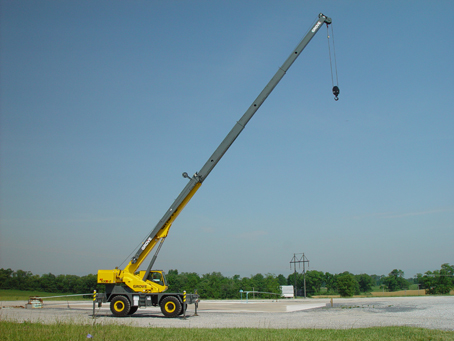

RT530E-2

The RT530E-2 offers the class leading lifting performance in the 30t (30 USt) class and better accessibility and transportability to jobsites thanks to shorter overall length, narrow width and lower height. This model features a 29 m (95 ft) full power boom and it comes equipped with the Crane Control System (CCS) and ECO mode to ensure smooth operation and lower operational costs. A new load sensing hydraulic system maximizes the cranes efficiency by utilizing piston pumps for crane functions. All of these features ensure the RT530E-2 will not only be a highly productive crane in your fleet, but also provide a strong return on your investment.

GROVE | Rough-Terrain Cranes

RT530E-2

  • Max capacity 30USt 30t
  • Total gross vehicle weight 60750lbs 27555kg
  • Main boom length 29ft - 95ft 8.8m - 29m
  • Max tip height 146ft 44.5m
Manitowoc Open gallery

Specifications

  • Description
    • Four-section full power boom – Fast and efficient operation on the jobsite.
    • 7,9 m to 13,7 m (26 ft to 45 ft) telescopic offsettable boom extension provides additional reach and versatility to win more jobs.
    • 5280 kg (11,640 lb.) permissible line pull and up to 136 m/min (445 fpm) single line speed – Less rigging, higher efficiency and productivity.
    • Hoist access platform – Better accessibility for rigging and routine maintenance.
    • Full vision cab with a high-output heating & air conditioning system that maximizes operator comfort.
    • Crane Control System (CCS) – Intuitive and user-friendly operating system with armrest mounted jog dial controls for easy input.
    • Dual or Single Axis Controls with operator programmable response curves and function speeds for precise operation.
    • Cummins QSB6.7L Tier 4 Final or Tier 3 diesel engine – Powerful and reliable performance.
    • ECO mode supports intelligent power management and decreased fuel consumption.
    • Four modes of steering increase jobsite maneuverability and makes crane positioning easier.
    • Inverted outrigger jacks provide additional protection and ensure maximum reliability.
    • Hydraulic disc brakes on all wheels – No additional air system, lower maintenance costs.
