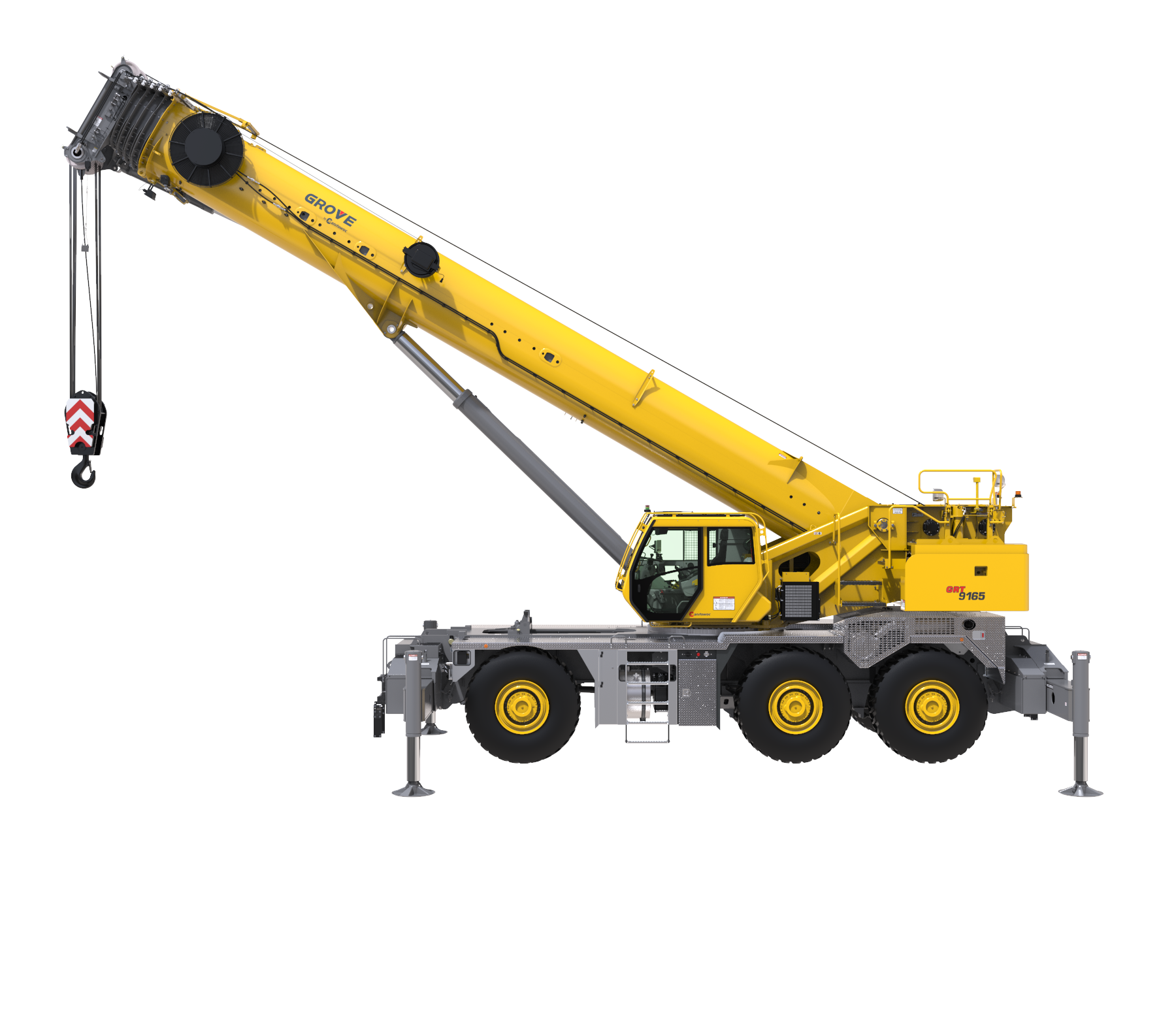

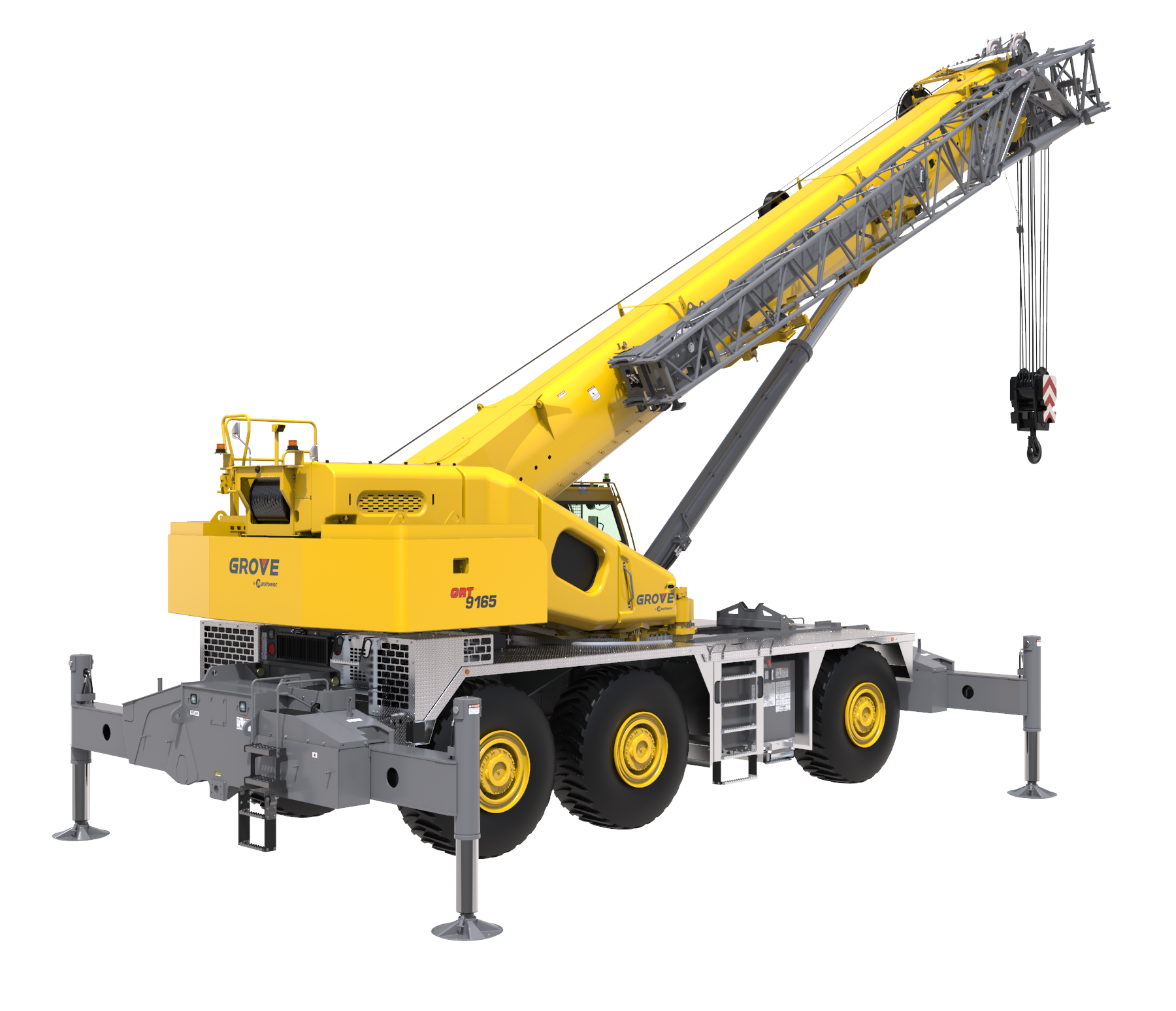

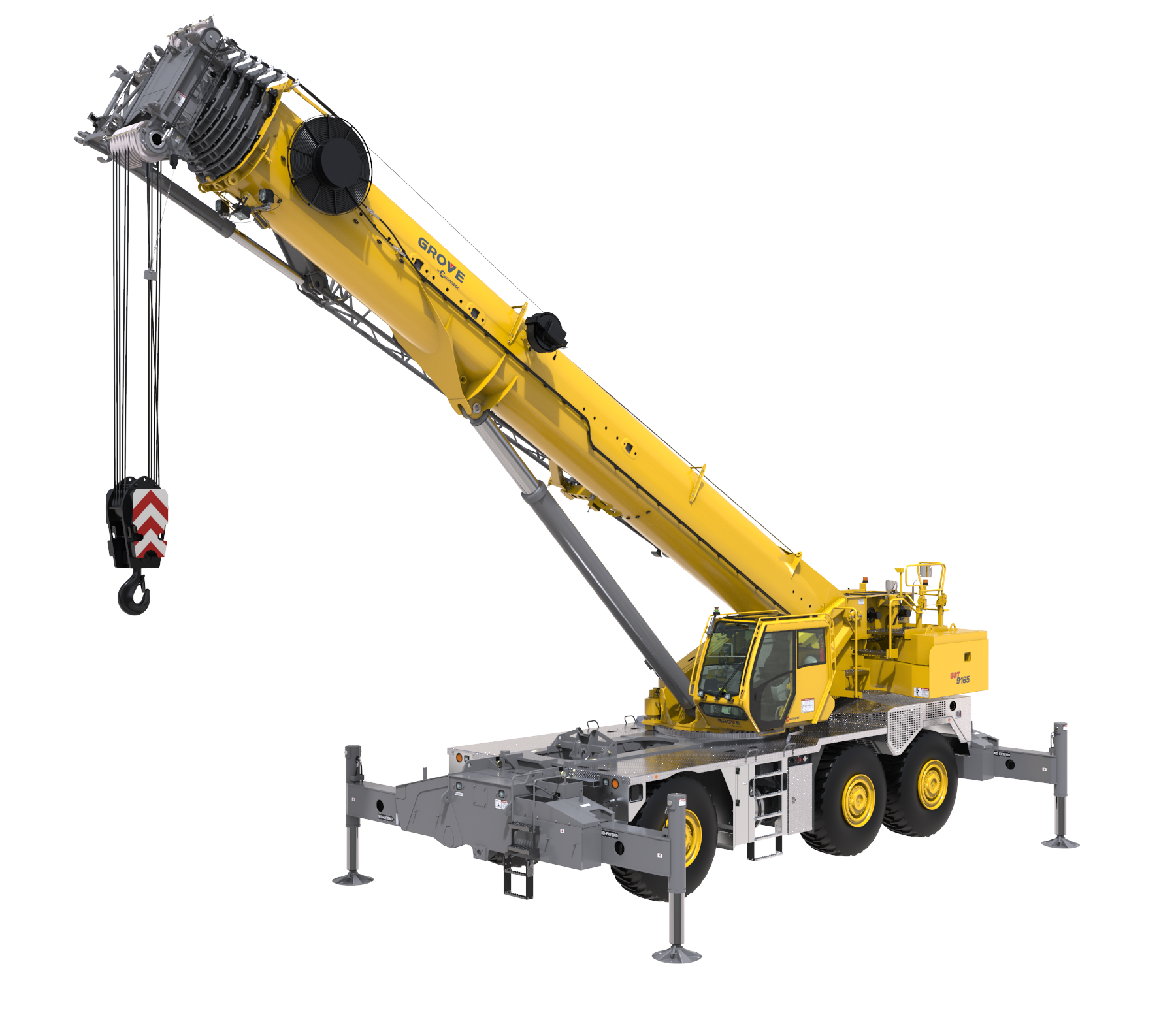

GRT9165

The GRT9165 was designed after gathering feedback from crane owners and operators to ensure that it is loaded with the features and reliability you demand. With a class leading 62,5 m (205 ft) main boom, new wider full vision cab, intuitive Crane Control System (CCS), reduced transport height and best in class load charts the GRT9165 will be a valuable asset in any crane owners’ fleet. And just like all GRT models, we are so confident in the performance and reliability of the GRT9165 that we are backing it with a two-year standard warranty.

Features

  • GRT Extended warranty

    GRT Extended warranty

    Now available on NEW GRT models: GRT655, GRT655L, GRT765, GRT780, GRT880, GRT8100-1, GRT8120 and GRT9165

    Learn more
GROVE | Rough-Terrain Cranes

GRT9165

  • Max capacity 165USt 150t
  • Total gross vehicle weight 191795lbs 86997kg
  • Main boom length 44.9ft - 205ft 13.7m - 62.5m
  • Max tip height 299ft 91.1m
Manitowoc Open gallery

Specifications

  • Description
    • Six section, MEGAFORM™ boom with TWIN-LOCK™ boom pinning system – Best in class reach and lifting performance.
    • Boom Configurator system increases efficiency and simplifies telescoping operation.
    • Manual or hydraulic bi-fold swingaway with offsets up to 50° improves ability to reach over obstacles and increases jobsite versatility.
    • Wireless rigging remote enables fast and convenient setup.
    • New wider full vision cab with 20° cab tilt and a high-output heating & air conditioning system that maximizes operator comfort.
    • Crane Control System (CCS) – User-friendly operating system with fully adjustable displays and armrest mounted jog dial controls for easy input.
    • Cummins B6.7L Stage V / Tier 4 Final diesel engine – Powerful and reliable performance.
    • ECO mode supports intelligent power management and decreased fuel consumption.
    • Flat decking, additional storage compartments and a full LED lighting package improve access and jobsite set up.
    • Four modes of steering increase jobsite maneuverability and make crane positioning easier.
    • Compact transport height and self-rigging, removable components allow for efficient and easy transportation to the job.
Load More

News

Long-time dealer Paterson Simons celebrates first Grove GRT9165 sale in Africa

• Mining company Newmont purchased the landmark crane, which is also the largest rough-terrain crane from Grove.
• In addition, Paterson Simons received two awards from Manitowoc, one for the first GRT9165 sale in Africa, and the other for its long-standing partnership with the company.

Grove’s new heavy-duty jib equips GRT9165 rough-terrain crane for precast work

• Grove introduces a new heavy-duty jib option for its GRT9165 rough-terrain crane.
• The GRT9165 with jib provides a competitive edge for setting precast concrete panels, due to its fast setup and economical transport.
• It’s an example of The Manitowoc Way in practice, as Manitowoc customers and dealers participated in the development process.

Maxim Crane Works inks 51 Grove crane order to support its expansion strategy

• The leading crane rental company in North America has purchased 51 Grove mobile cranes, a mix of high capacity rough-terrain cranes and five- and six-axle all-terrain cranes.
• After speaking with customers, Maxim selected cranes it knew would be in demand over the coming five years.
• The company is one of the leading lifting providers in North America and selected the Grove cranes for their versatility and reliability.

Brand & Range

Brand

GROVE

Grove is the world leader in mobile cranes. For nearly a century, Grove has delivered best-in-class performance and groundbreaking technology through its range of rough-terrain, all-terrain, truck-mounted, military, industrial and telescoping crawler cranes. With the most rigorous testing processes in the lifting industry, Grove’s well-earned reputation for quality and reliability remains unmatched in the lifting industry.

Range

Rough-Terrain Cranes

Grove rough terrain cranes are designed to handle the toughest jobsite conditions with lift capacities ranging from 30 t to 150 t (30 USt to 165 USt). Performance, productivity and operator comfort features allow your operators to work effectively for longer days with less fatigue. Quality, reliability and easy maintenance are built into every Grove rough terrain crane, making them the right choice for your business. Unique features such as inverted outrigger jacks, hydraulic disc brakes, higher line pull and speed, and Manitowoc's Crane Control System (CCS) with ECO mode will ensure lower operational and maintenance costs, while providing the best possible return on your investment.
