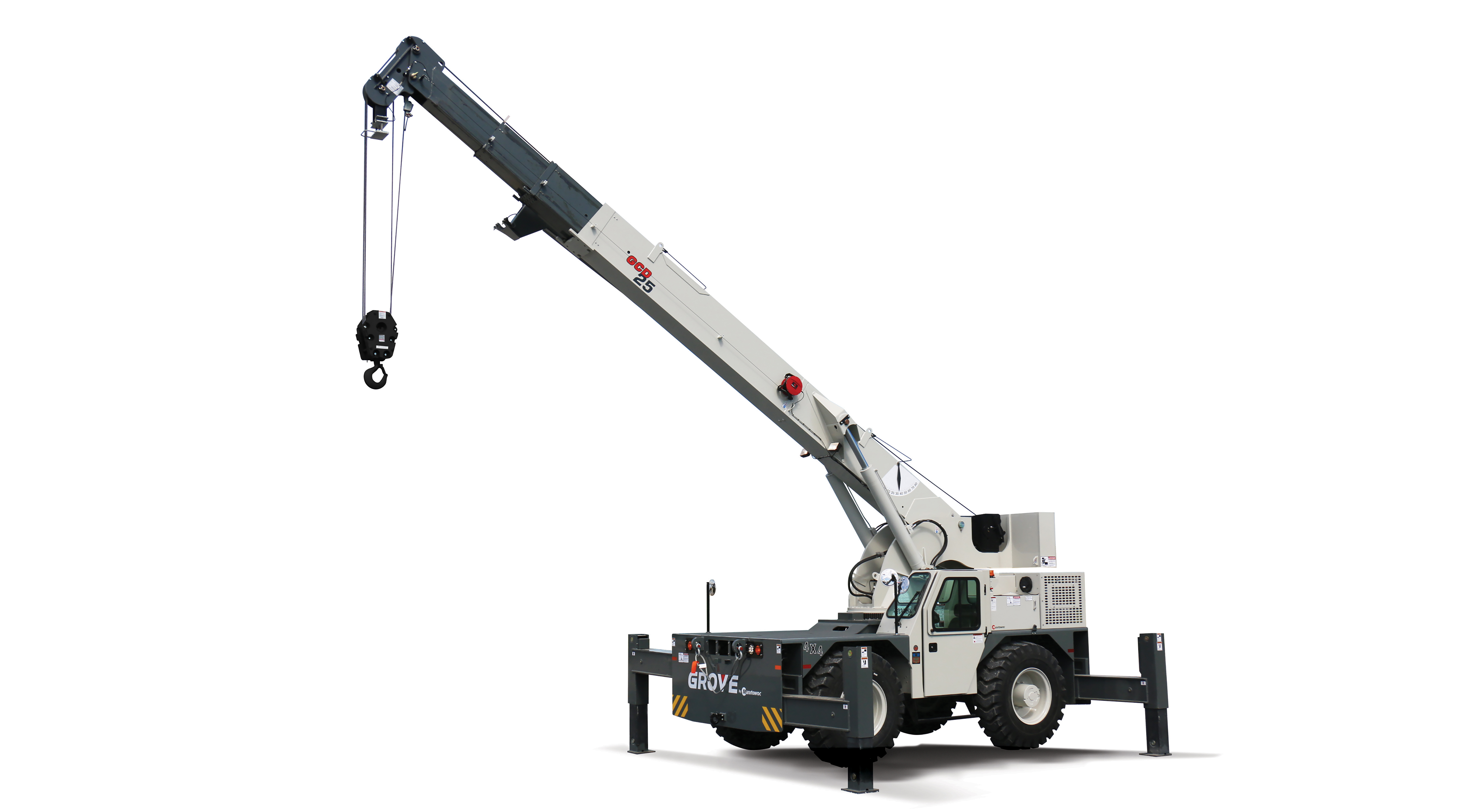

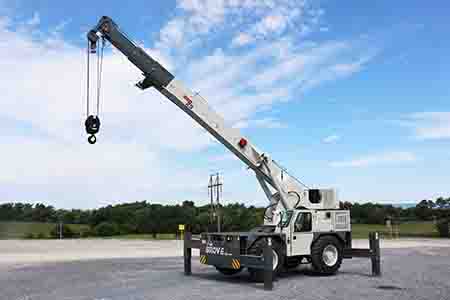

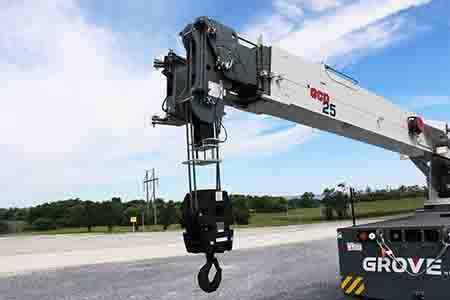

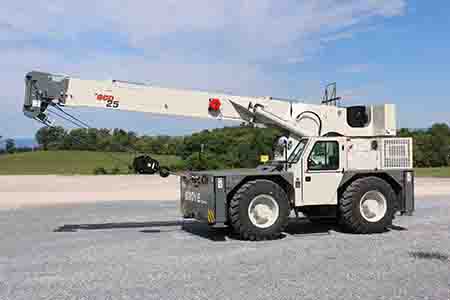

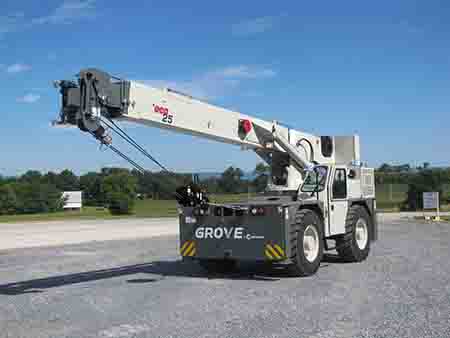

GCD25

The new GCD25 is a 22 t (25 USt) capacity carrydeck crane offering a four-section 21.6 m (71 ft) boom four-wheel drive/four-wheel steer capability.  It also has a four- position pivoting boom head for low head room clearance and out and down outriggers that can be setup in several modes depending on jobsite requirements.

GROVE | Carrydeck Cranes

GCD25

  • Max capacity 25USt 22t
  • Total gross vehicle weight 45465lbs 20620kg
  • Main boom length 71ft 21.6m
  • Max tip height 95ft 29m
  • Boom extension 17ft 5.1m
Manitowoc Open gallery

Specifications

  • Description
    • Best in class reach with 21.6 m (71 ft.) boom and optional 5.1 m (17 ft.) boom extension
    • Simple operation with automotive dash layout
    • Flexible setup with multiple outrigger positions and pivoting boom nose
    • Ease of transport – lightest in its class @ 20 623 kg (45 465 lbs.)
