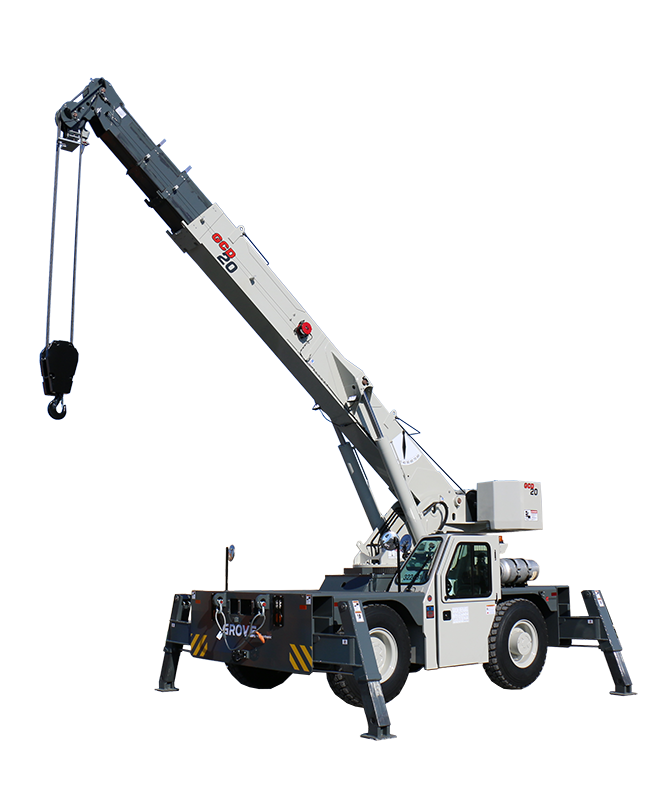

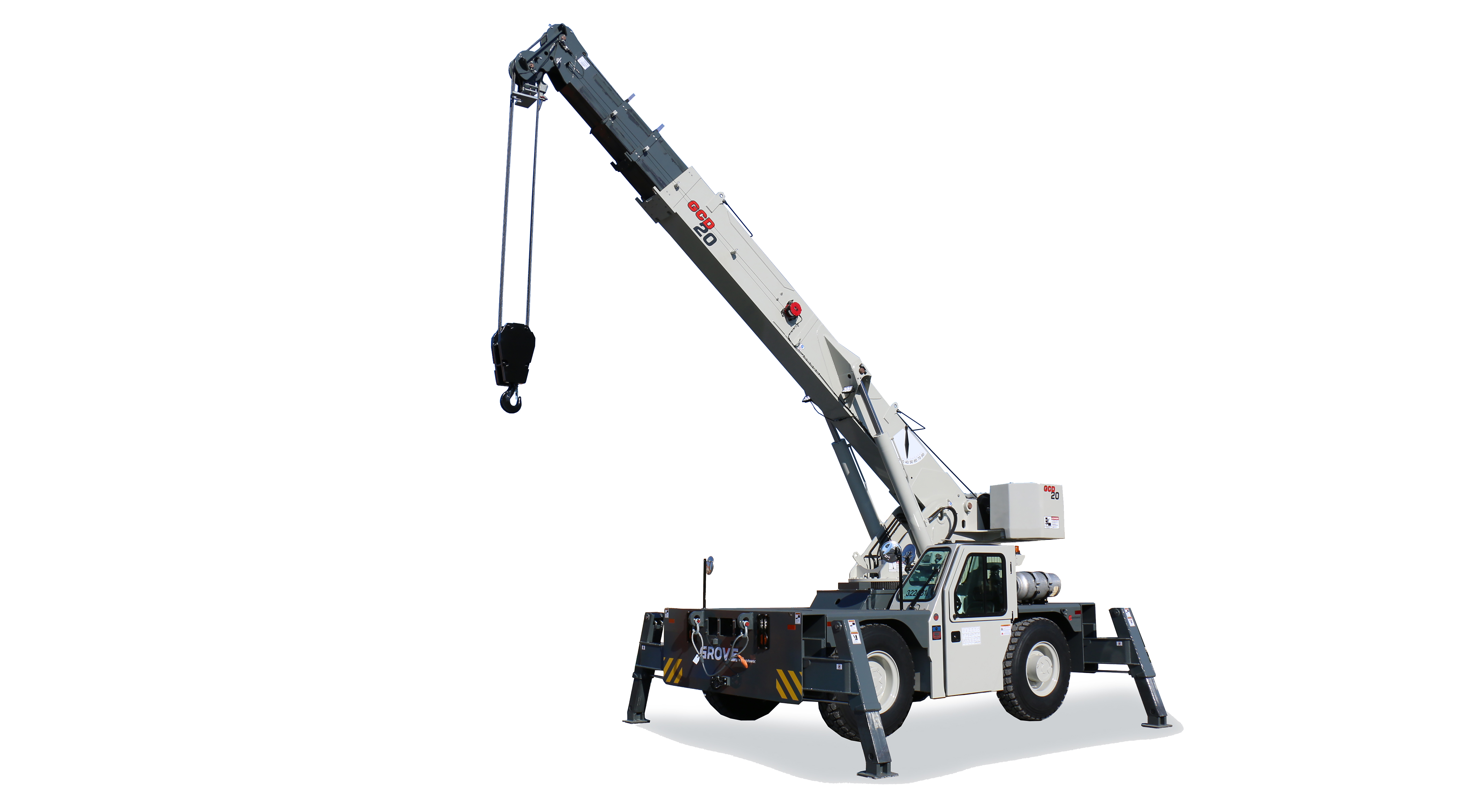

GCD20

The new GCD20 features a 16 6m (54.5 ft) four section full power main boom and provides superior innovation along with state-of-the-art design. The crane features three steering modes with electronic self-alignment a four speed powershift transmission and is available with 4WD making it easy to maneuver around the jobsite. The crane has a maximum capacity of 18 t (20 USt) but is capable of transporting loads of up to 9,070 kg (20,000 lbs.) on the deck. These features combined with graphical full color RCL display and hydraulic proportional joystick controls make the GCD20 a must have in any fleet.

GROVE | Carrydeck Cranes

GCD20

  • Max capacity 20USt 18t
  • Total gross vehicle weight 36556lbs 16582kg
  • Main boom length 54.5ft 16.6m
  • Max tip height 86ft 26.2m
  • Boom extension 15ft - 25ft 4.6m - 7.6m
Manitowoc Open gallery

Specifications

  • Description
    • Cummins QSF 3.8L Diesel engine or
    • GM4.3L gas / LP gas engine (dual fuel)
    • 4 Speed Powershift transmission
    • 2 wheel 4 wheel and crab steer with electronic self-alignment
    • Three position pivoting boom nose
    • Load sensing hydraulic proportional joystick controls
    • Graphical full color simple to operate RCL system
    • Two position outriggers with independent controls
    • 6 805 kg (13 195 lbs.) deck carry capacity
Load More

Brand & Range

Brand

GROVE

Grove is the world leader in mobile cranes. For nearly a century, Grove has delivered best-in-class performance and groundbreaking technology through its range of rough-terrain, all-terrain, truck-mounted, military, industrial and telescoping crawler cranes. With the most rigorous testing processes in the lifting industry, Grove’s well-earned reputation for quality and reliability remains unmatched in the lifting industry.

Range

Carrydeck Cranes

Compact industrial cranes are used for plant maintenance and material handling jobs. Simple to operate, these units feature carry decks and multi-mode steering allowing operation in tight quarters. These machines offer compact dimensions, good maneuverability and excellent pick and carry capacities.
