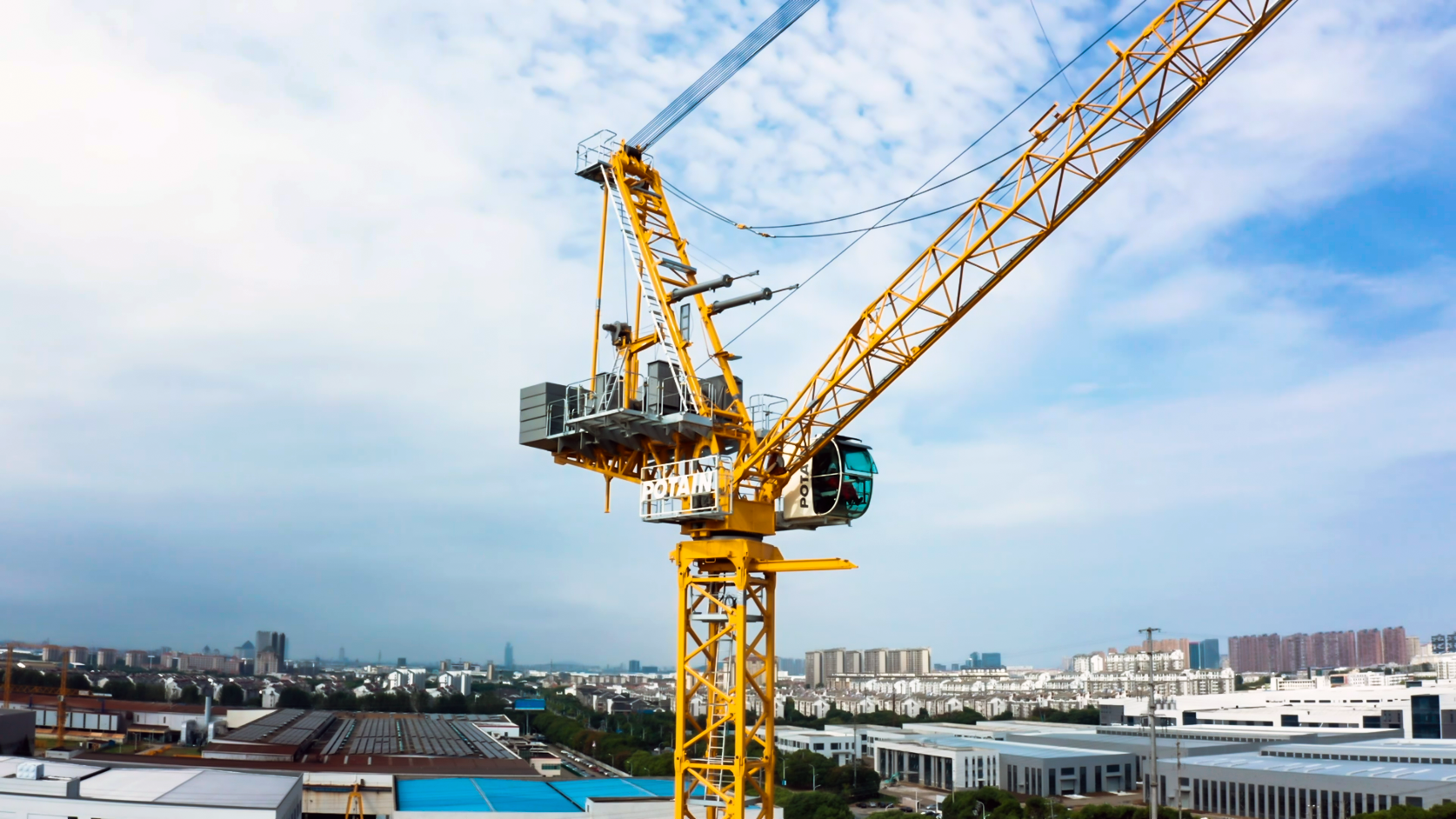

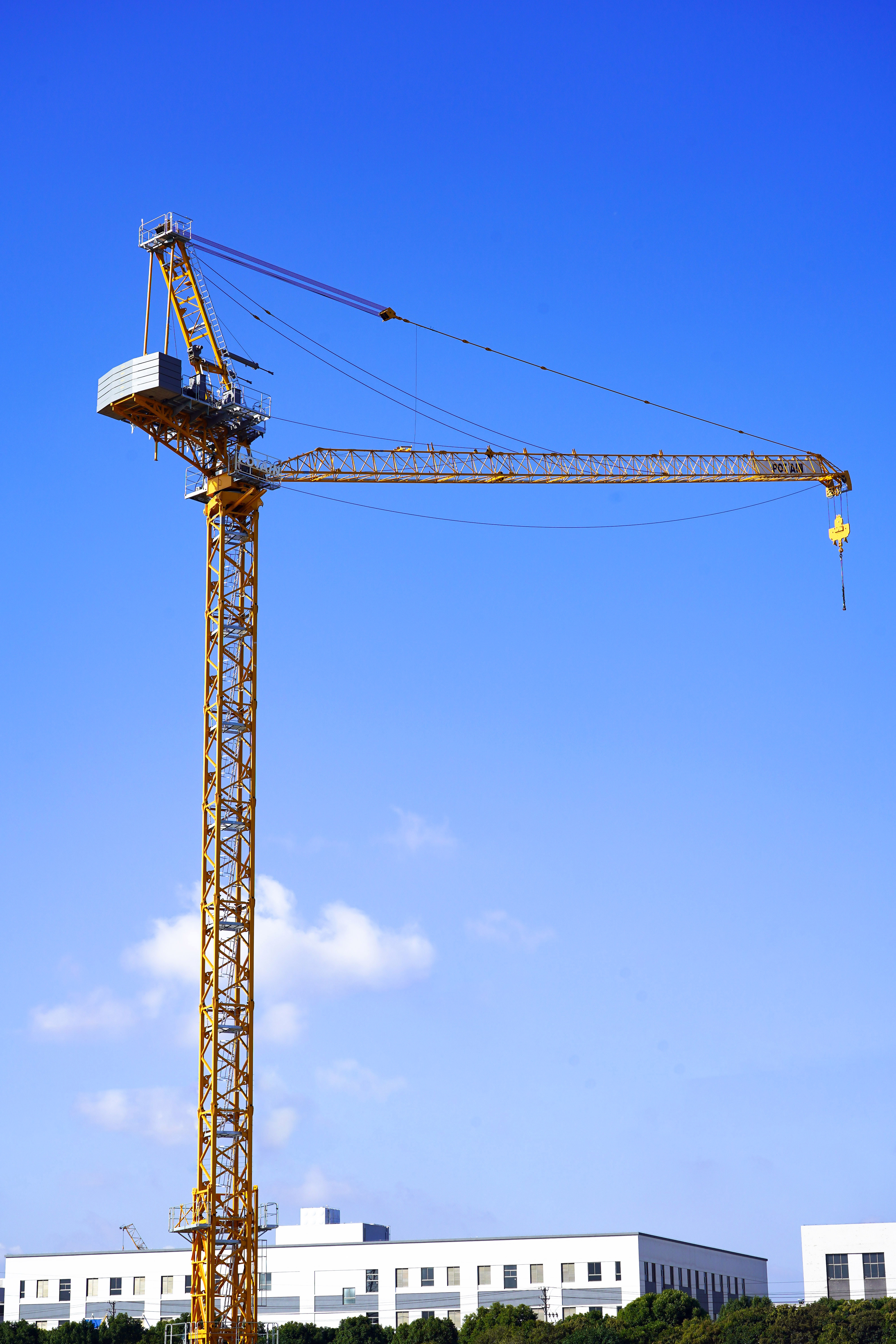

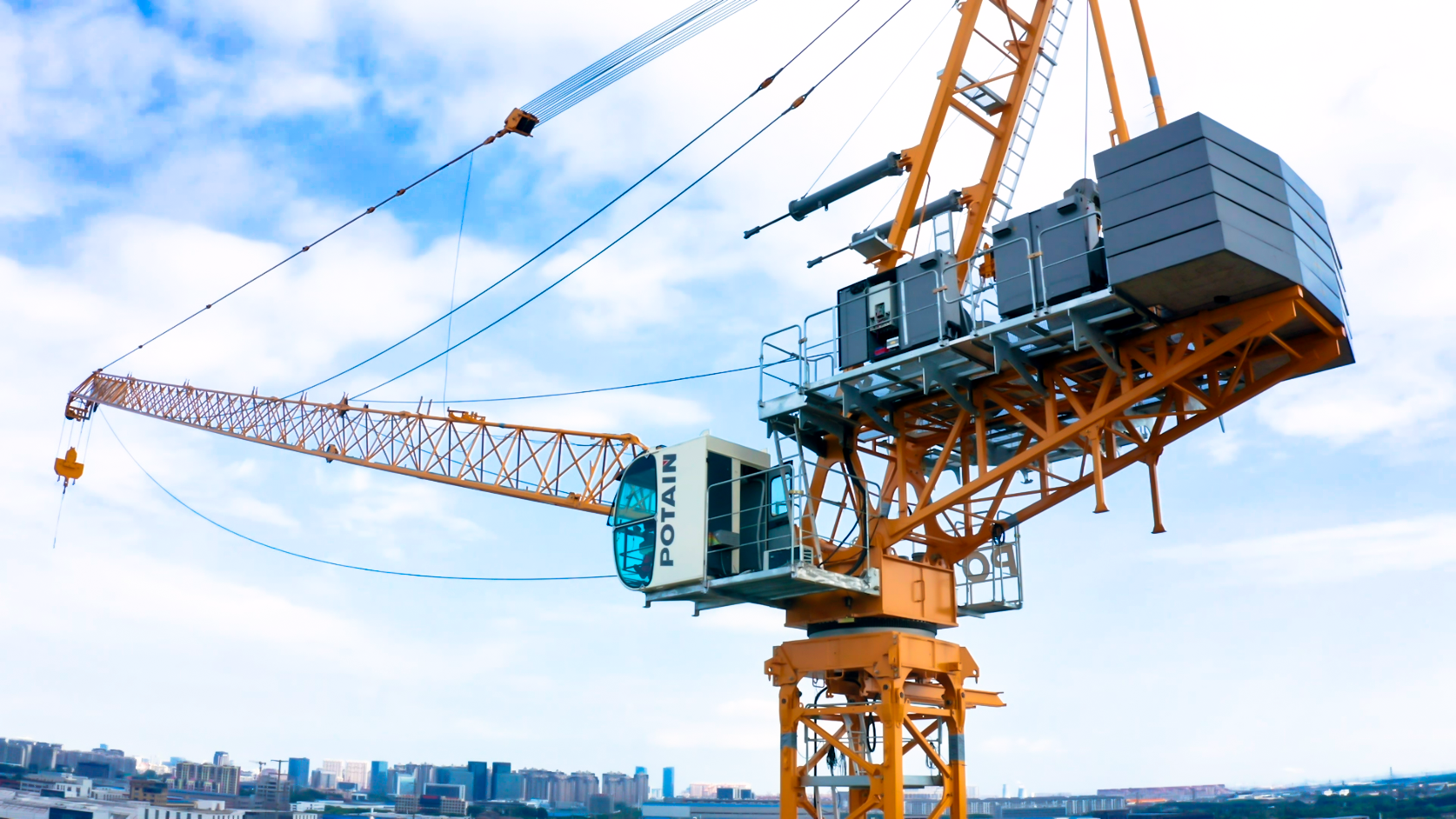

Saving time and space with the new Potain MCR 305

• The latest luffing jib crane from Potain can reach a height of 190 m with almost half the anchorage points required by similar models.
• It also has a smaller out-of-service radius, optimizing space on jobsites for better productivity and profitability.
• There are two versions available: one with a maximum capacity of 20 t and a 3.1 t tip load with a 60 m jib. The other with a maximum capacity of 25 t and a 3 t tip load with the same 60 m jib.

Manitowoc is launching its all-new Potain MCR 305 luffing jib tower crane, which was jointly developed by French and Chinese engineers. Customer feedback harnessed through the company’s extensive Voice of the Customer process helped optimize the new design, offering several improvements over earlier models.

One of the most impressive advances of the MCR 305 is its optimized design, which significantly reduces the number of points where the crane must be secured to a building as construction grows upwards. Requiring fewer anchorage points means more efficient assembly and less expense for contractors, saving precious time on the tight schedules high-rise projects demand. For example, with the existing MCR 295 A configured with a 60 m jib, 11 anchor points are required to reach a height of 192.6 m. However, with the new MCR 305 with the same jib, just six anchor points are needed to reach 194.3 m.

Equally important for contractors is the MCR 305’s reduced out-of-service radius. For example, with a 60 m jib the out-of-service radius of the MCR 305 is just 12.5 m, compared with 22 m for the MCR 295 A in the same configuration. Lowering the out-of-service radius allows contractors to place more cranes on constrained jobsites, making more lifting options available and delivering better space optimization. It could mean projects considering a high-rise build with just one crane may now be able to accommodate two, delivering huge productivity advantages.

Heavy lifting

The new crane’s increased load charts make the MCR 305 more attractive for high-rise construction, as it can handle heavier loads, said Leong Kwong-Joon, regional product manager for Potain tower cranes at Manitowoc.

“We’ve had extensive conversations with customers and the insights we gained have helped us develop an impressive new luffing jib crane. Strength gains are realized along the entire length of the jib. There are also great savings for customers in climbing higher faster, and better productivity with a substantially reduced out-of-service radius. We’re excited to launch this new model to market.”

Basic design, wind performance, and wind tunnel tests for the crane were carried out in France, while the Chinese team completed the structural design and test verifications. Each jib position and lifting point on the crane was subject to an extensive design and analysis process lasting several months.

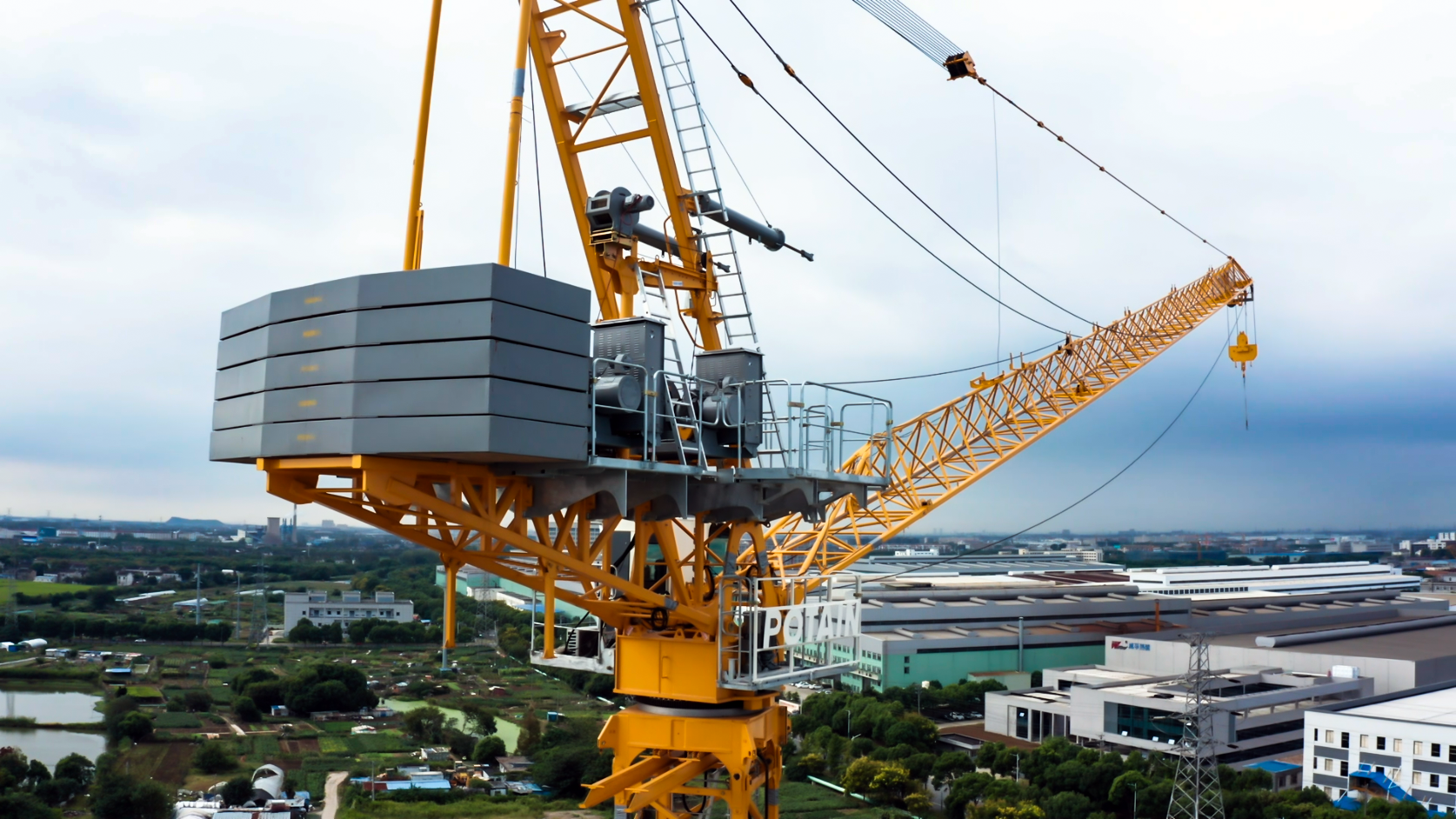

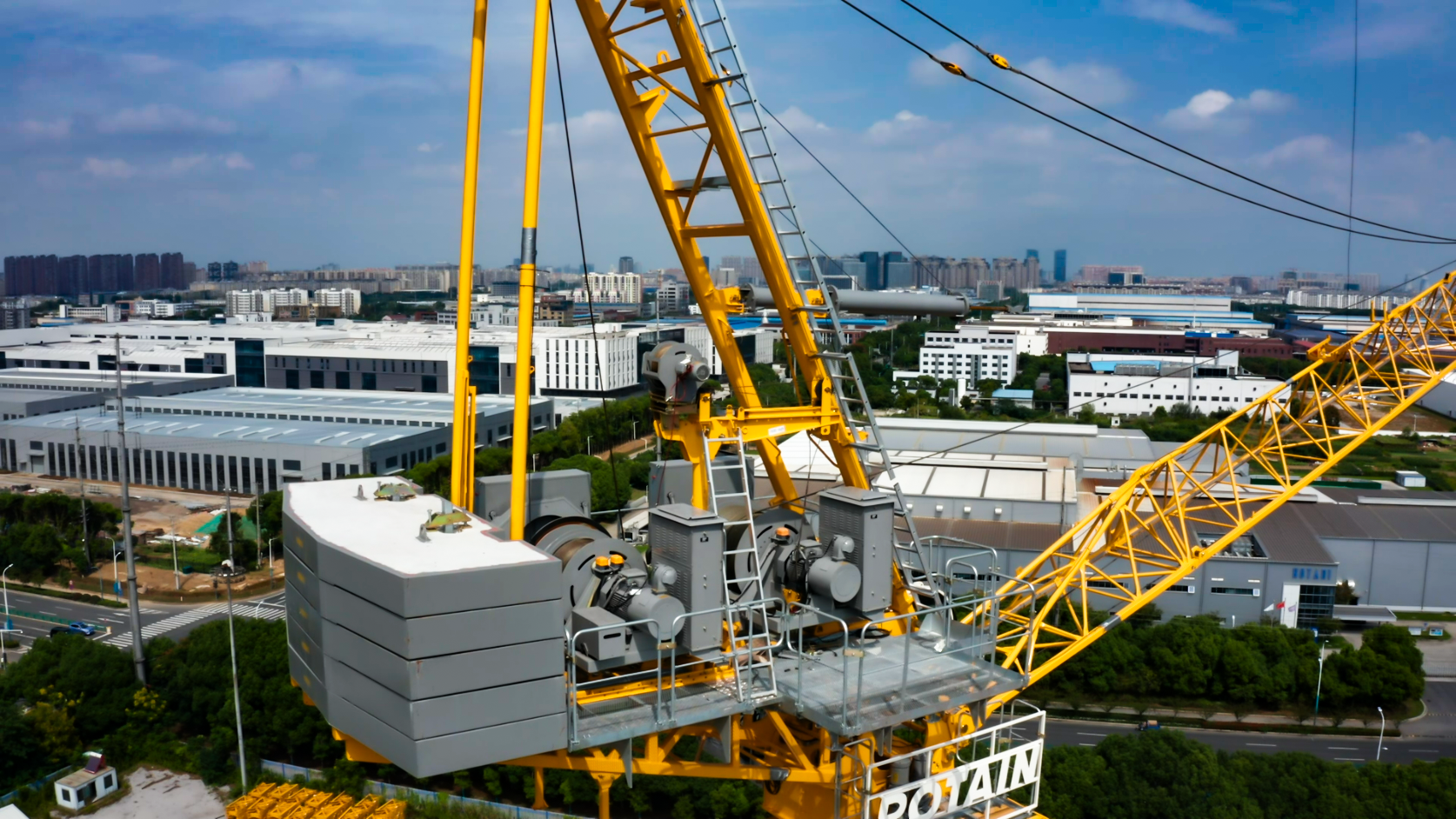

There are two versions of the MCR 305: the 20 t capacity MCR 305 H20, and the 25 t capacity MCR 305 H25. With a 60 m jib length, maximum tip loads are 3.1 t for the H20 version and 3 t for the H25 version. There are multiple winch options, depending on customer preference, including HPL (High-Performance Lifting) options, with up to 1,200 m of wire rope available.

The cranes are built at the Manitowoc factory in Zhangjiagang, China, and will be sold across Asia, Australia and New Zealand, Africa, the Middle East, and Latin America.
