NBT60L

The NBT60L delivers a strong 60 ton capacity and a 151 ft. 5-section main boom for class-leading reach in the 60-ton boom truck market.

NATIONAL CRANE | Swing Seat Boom Trucks

NBT60L

  • Max capacity 60USt 54.4t
  • Boom extension 36ft 11m
  • Main boom length 151ft 46m
  • Max tip height 202ft 61.6m

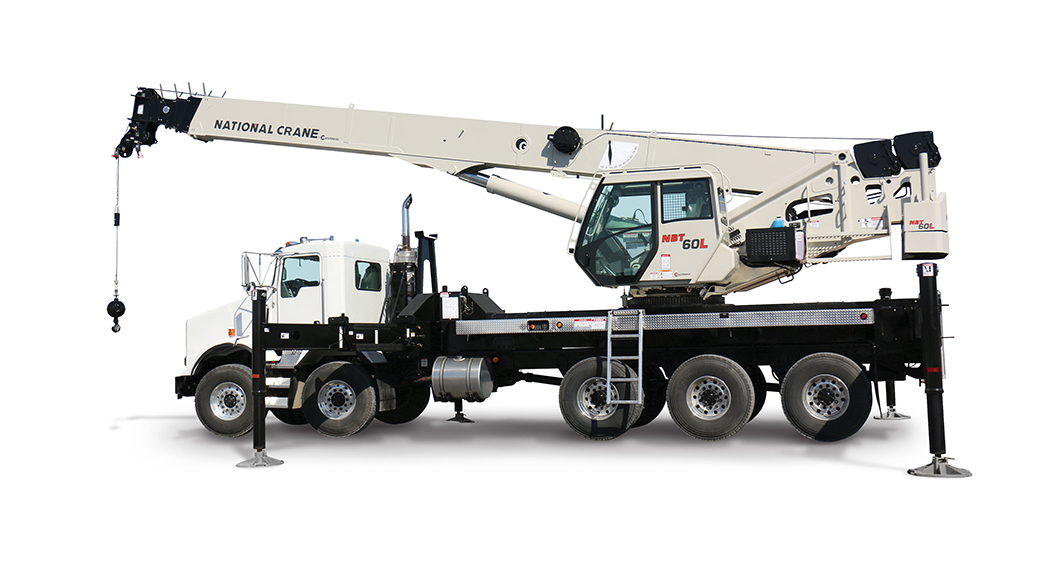

NBT60L_silhouette-transparent.png Open gallery

Specifications

  • Description
    • Five-section full power 151 ft boom minimizes the need to swing a jib for faster setup and productivity
    • Optional 11 m (36 ft) fixed offsettable lattice jib (0 15 30)
    • Simple to use color graphical RCL display and integrated control system complete with truck and crane system monitoring. Troubleshoot with Manitowoc Diagnostic Smartphone App!
    • Operator centric features include a standard 20-degreee tilt cab with heated seat hydraulically removable counterweight and lightweight polymeric outrigger pads
    • State of the art features electric over hydraulic joystick controls available in both single axis and dual axis configurations.
    • "Truck crane" inspired superstructure - minimizes machine flex versus other competitive boom trucks
Load More

News

Manitowoc unveils National Crane NBT40-2 series boom trucks, proudly made in America

National Crane will showcase two of its newest models at CONEXPO in March, the newly unveiled NBT40-2 series boom trucks and the NBT60L that was released in late 2019.

CraneWorks expands rental fleet with several new boom trucks from National Crane

The crane rental company has already received new NBT60L units; with additional shipments of NBT55L and NBT45-142 cranes arriving soon.

All three boom truck models provide excellent performance in a wide range of applications that require good mobility and speed.

Manitowoc introduces new National Crane NBT60L boom truck

The Manitowoc Company has launched the NBT60L the latest addition to its National Crane boom truck product line. This 60 USt product offering now features the longest boom length in its tonnage class with 151 ft of main boom and a maximum main boom height of 161 ft. It can be equipped with an optional 36 ft off-settable lattice jib that reaches a 196 ft maximum tip height providing a winning combination of exceptional capacity and reach that is unmatched in the industry.

Brand & Range

Brand

NATIONAL CRANE

National Crane boom trucks set the global standard for truck-mounted hydraulic cranes. With crane models that offer exceptional reach, many feature the longest boom and strongest load chart in their capacity class. Set up on the job site is flexible and efficient with National Crane’s innovative outrigger systems and compact, fully roadable chassis. Unique technologies that aid in both operation and comfort make National Crane the favorite boom truck brand of operators around the world.

Range

Swing Seat Boom Trucks

Swing seat cranes feature the comfort and convenience of an enclosed operator’s cab. National Crane offers 14 models ranging from 27,2 t (30 USt) to 54,49 t (60 USt). Maximum vertical reach ranges from 49,7 m (161 ft) to 62,8 m (206 ft).
