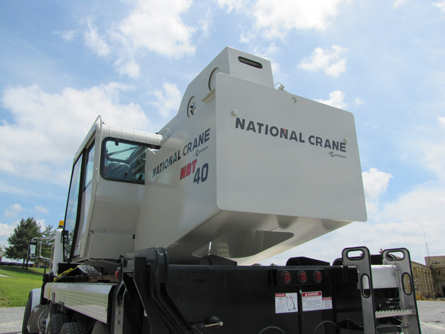

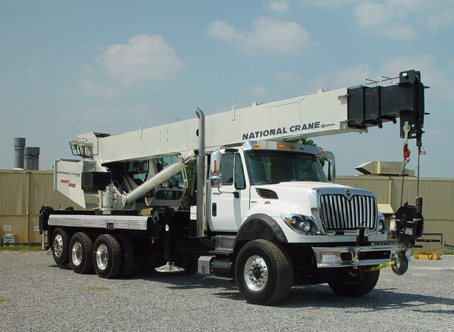

NBT40

Non current product

With a 40 USt load capacity the NBT40 features state-of-the-art control valves a full color graphical LMI display and a deluxe operator's cab that provides excellent protection and comfort. Crane setup is quick and easy as the NBT40 provides capacity charts for 100 percent 50 percent and fully retracted outriggers. The  NBT40 comes equipped with a 1900 lb tailswing counterweight and is available in three optional boom lengths: 103 ft 127 ft and 142 ft.

NATIONAL CRANE | Swing Seat Boom Trucks

NBT40

  • Boom extension 55ft 16.764m
  • Main boom length 142ft 43.2816m
  • Max capacity 40USt 36.2874t
  • Max tip height 190ft 57.912m
Manitowoc Open gallery

Specifications

  • Description
    • Optional 142 ft (43 3 m) five-section full power boom
    • Optional 127 ft (38 7 m) five-section full power boom
    • Optional 103 ft (31 4 m) four-section full power boom
    • 1900 lb ( 862kg) tailswing counterweight
    • Self lubricating Easy Glide wear pads
    • Load Moment Indicator with Graphical Display
    • Work Area Definition system (WADS)
    • Capacity charts for 100 percent 50 percent and fully retracted outriggers
    • Deluxe Operator's Cab with diesel heater w/defroster skylight and pilot-operated hydraulic controllers.
Load More

Brand & Range

Brand

NATIONAL CRANE

National Crane boom trucks set the global standard for truck-mounted hydraulic cranes. With crane models that offer exceptional reach, many feature the longest boom and strongest load chart in their capacity class. Set up on the job site is flexible and efficient with National Crane’s innovative outrigger systems and compact, fully roadable chassis. Unique technologies that aid in both operation and comfort make National Crane the favorite boom truck brand of operators around the world.

Range

Swing Seat Boom Trucks

Swing seat cranes feature the comfort and convenience of an enclosed operator’s cab. National Crane offers 14 models ranging from 27,2 t (30 USt) to 54,49 t (60 USt). Maximum vertical reach ranges from 49,7 m (161 ft) to 62,8 m (206 ft).
