Reinforced mast: K850 2.45 m or round R 2.5 m
The frequency variation mechanisms (lift distribution orientation) allow the following circumstances:
- The regulation and control of the motor can be adapted to the machine's features notably height jib length and the load being hoisted: the behaviour of the crane while in operation is adapted to its configuration.
- Acceleration and deceleration for the machine and the crane operator are optimized: the crane structure is protected over the long term.
- Deceleration phases can limit the use of brakes. Brakes can be dropped at zero speed. This protects the crane structure over the long term.
- The crane operator can interact with the deceleration curves (it is possible to operate against orientation with Optima+). This allows the machine to be adapted to operating habits.
- The technician can quickly establish detailed diagnostics on the mechanisms thanks to the various menus on the variation panel (reading parameters meters) permitting a simple fast and efficient dialogue between man and machine.
- Inrush current can be reduced.
- Consumption can be reduced.
The MD 610 combines numerous innovations designed to reinforce safety and simplicity during assembly:

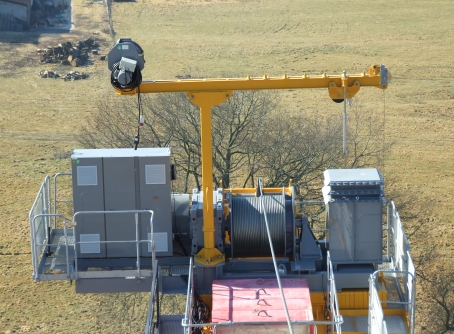

- The auxiliary winch used to ready the counter jib and jib cables considerably reduces assembly time. It also serves to mechanise the arm on the 25 t version.

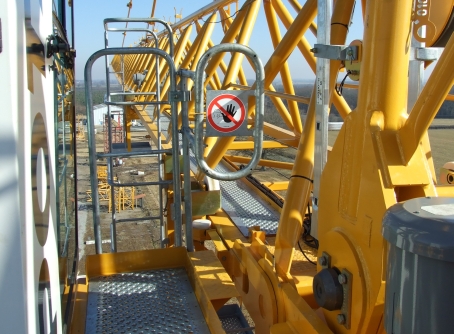

- The large platforms and designated access distinctly improve and secure working conditions for lifting personnel.
- Every crane component is equipped with anchoring points for safe handling.

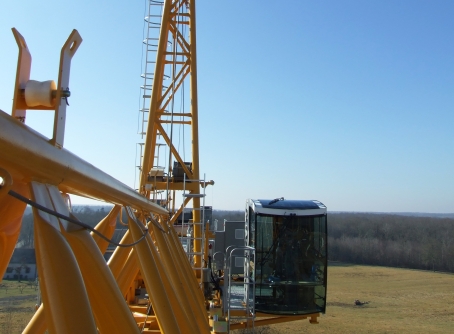

The next-generation Ultra View cab meets all the requirements for the crane operator to work safely in a comfortable ergonomic environment.
Extremely spacious it also provides excellent visibility of the construction site thanks to its 9 m² glass surface.
It comes with state-of-the-art equipment and a highly functional layout that allows the operator to personalise his space:
- Auto-regulated climate control upholstery
- Dialog Visu II indicators (display area showing information to assist in operation: immediate range permitted range height suspended load permitted load time wind haul)
- Front window wipers side window wipers sun visor
- Storage table electrical outlets
Key Advantages
- Fastest winch in its class: 270 hp for a maximum load of 40 t 532 m cable winding capacity
- Auxiliary winch standard for assembling cables
- Jib assembly possible in 1 2 or 3 parts. Maximum weight during assembly can be limited to approx. 16 t
- Comfortable access for assembly and maintenance
